Premium Hydraulic Electric Scissor Lifts For Sale | DADE® Factory
Engineered by DADE Machinery, China’s premier lifting platform manufacturer. Certified by CE and IPAF, our Scissor Lifts exceptional structural rigidity, lightweight portability, and stable vertical reach up to 18 meters. Perfectly designed for high-altitude maintenance in hotels, airports, warehouses, and commercial facilities.
Established 2014 | 7 Production Bases (200+ Acres) | CE & IPAF Certified Approved Quality

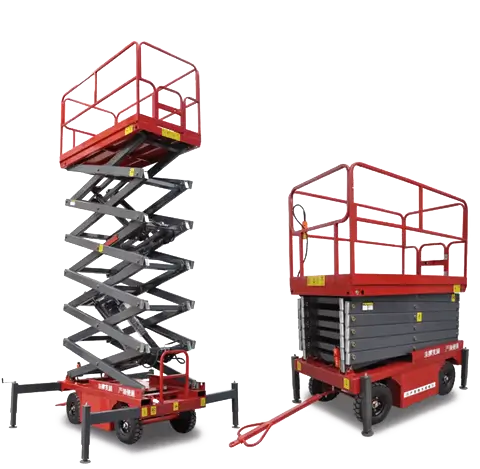

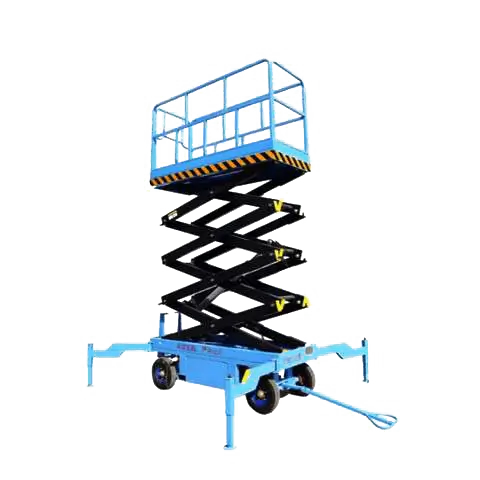

Mobile Hydraulic Scissor Lifts-(CY Series)
Our mobile hydraulic scissor lifts feature heavy-duty steel structures for high-altitude installation and scaffolding. These industrial lifting platforms deliver maximum structural stability with premium hydraulic power units and customizable platform dimensions.
Technical Profile:
Engineered for heavy-duty structural installations, exterior cladding, and plant facility maintenance. The CY series utilizes manual towing transit paired with an optimized electric hydraulic lift drive. Enhanced with heavy-duty extended outrigger stabilizer legs and a massive anti-slip deck, it delivers industry-leading loading capacities.
Four Payload Matrices:
CY0.5 Series: Rated loading capacity of 500 kg, with working heights stretching up to 18m.
CY1.0 Series: Rated loading capacity of 1000 kg, covering working heights from 8m to 16m.
CY1.5 & CY2.0 Series: Ultimate heavy-duty matrices built for industrial tooling and material transfer, offering 1500 kg to 2000 kg payloads.

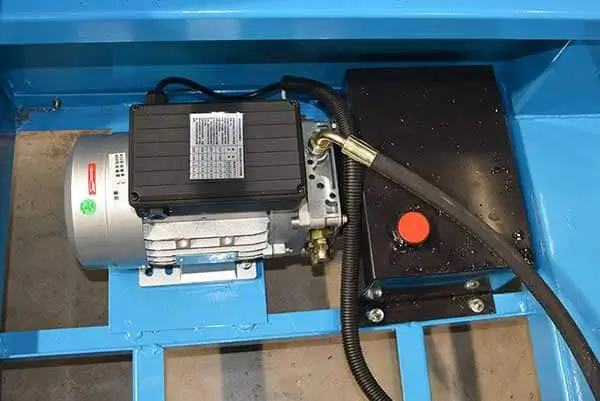

Integrated Hydraulic Power Unit
Engineered for seamless vertical extension and reliable pressure management. Our integrated hydraulic power pack couples a high-torque electric motor with a precision leak-proof pump assembly, delivering smooth, responsive lifting force even when loaded to maximum weight capacities.

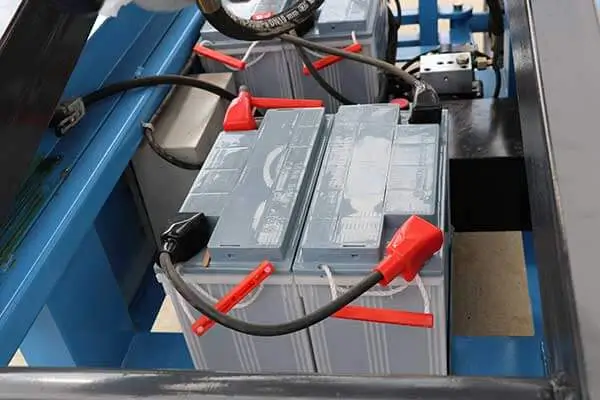

Deep-Cycle Battery Pack
Configured with high-capacity, deep-cycle traction batteries to sustain intensive, continuous multi-shift operations. This zero-emission power ecosystem guarantees excellent energy density and an extended lifespan, making it ideal for high-frequency indoor warehousing hubs and cleanroom environments.

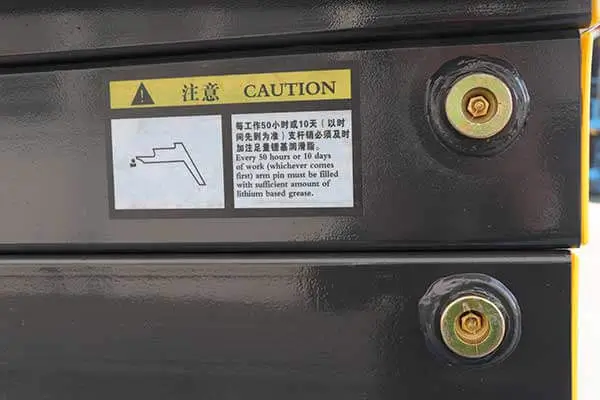

Easy Maintenance
Features high-visibility industrial caution and maintenance labels for international job site safety compliance. Specially engineered with easily accessible grease nipples at key pivot joints, making routine lubrication fast and extending the structural lifespan of the scissor arms.
Specification – CY Series
| Model | Platform Size (mm) | Load Capacity (kg) | Max. Platform Ht. (m) | Max. Working Ht. (m) | Overall Dimensions (mm) | Machine Weight (kg) |
| CY0.5-4 | 2100*830 | 500 | 4 | 6 | 2250×950×1100 | 800 |
| CY0.5-6 | 2100*830 | 500 | 6 | 8 | 2250×950×1200 | 880 |
| CY0.5-8 | 2100*930 | 500 | 8 | 10 | 2250×1060×1380 | 1050 |
| CY0.5-10 | 2100*1230 | 500 | 10 | 12 | 2250×1350×1530 | 1360 |
| CY0.5-12 | 2550*1530 | 500 | 12 | 14 | 2796×1670×1750 | 2260 |
| CY0.5-14 | 2812*1530 | 500 | 14 | 16 | 3067×1730×1810 | 2486 |
| CY0.3-16 | 2812*1600 | 300 | 16 | 18 | 3067×1810×2080 | 3063 |
| CY0.3-18 | 3070*1600 | 300 | 18 | 20 | 3321×1810×2080 | 3900 |
| CY1.0-6 | 2100*1200 | 1000 | 6 | 8 | 2250×1350×1300 | 1400 |
| CY1.0-8 | 2100*1200 | 1000 | 8 | 10 | 2250×1350×1420 | 1585 |
| CY1.0-10 | 2100*1200 | 1000 | 10 | 12 | 2250×1350×1530 | 1700 |
| CY1.0-12 | 2550*1530 | 1000 | 12 | 14 | 2796×1670×1750 | 2560 |
| CY1.0-14 | 2812*1600 | 1000 | 14 | 16 | 3067×1810×1900 | 3230 |
| CY1.5-6 | 2100*1530 | 1500 | 6 | 8 | 2250×1750×1530 | 1780 |
| CY1.5-8 | 2100*1530 | 1500 | 8 | 10 | 2250×1750×1690 | 2070 |
| CY1.5-10 | 2100*1530 | 1500 | 10 | 12 | 2250×1750×1850 | 2250 |
| CY1.5-12 | 2550*1530 | 1500 | 12 | 14 | 2796×1762×1850 | 2900 |
| CY2.0-6 | 2100*1530 | 2000 | 6 | 8 | 2250×1750×1530 | 1780 |
| CY2.0-8 | 2100*1530 | 2000 | 8 | 10 | 2250×1750×1690 | 2070 |
| CY2.0-10 | 2100*1530 | 2000 | 10 | 12 | 2250×1750×1850 | 2250 |
| CY2.0-12 | 2550*1600 | 2000 | 12 | 14 | 2796×1852×1954 | 3200 |
| CY2.0-14 | 2816*1600 | 2000 | 14 | 16 | 3067×1852×2230 | 3900 |

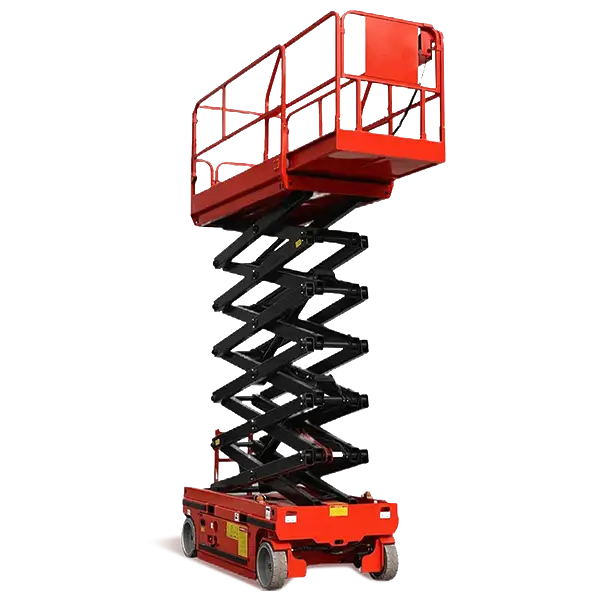

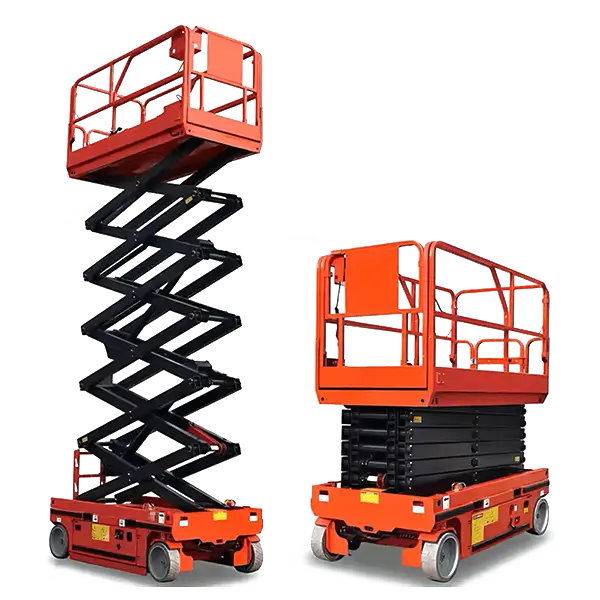

Premium Electric Scissor Lifts for Sale & Technical Specifications -(GTJZ Series)
DADE self-propelled electric scissor lifts provide efficient, zero-emission performance for high-frequency warehouse logistics. Equipped with responsive automatic braking systems, these compact aerial platforms drive smoothly at full working height.
Technical Profile:
The premier choice for high-frequency indoor warehousing, logistics hubs, and airport maintenance. Operators can seamlessly drive, steer, steer-by-tilt, and lift the platform directly from the upper deck console via a smart proportional controller. Outfitted with non-marking solid rubber tires, an automatic braking system, an active pothole protection mechanism, and a slide-out deck extension.
Core Fleet Selection:
- Compact Matrix (GTJZ-04 / 05 / 06): Working heights of 6m to 8m, payloads up to 380kg—perfect for tight warehouse aisles.
- High-Altitude Matrix (GTJZ-08 / 10 / 12 / 14): Working heights up to 15.8m, structured with wide chassis frames for maximum rigidity.
- CE、SGS、TÜV、ISO9001

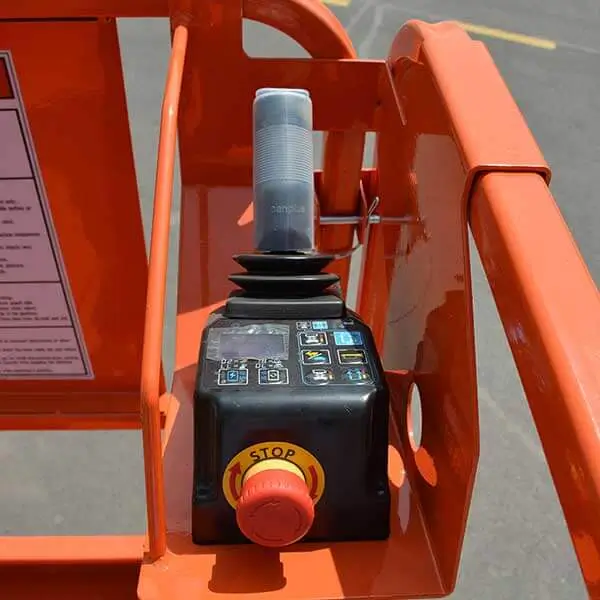

Intelligent Proportional Control System
Equipped with an intuitive upper platform control box featuring a high-precision proportional joystick. This ergonomic setup ensures extremely smooth driving, accurate steering, and seamless vertical lifting, fully integrated with a responsive emergency stop switch for absolute on-site operator safety.

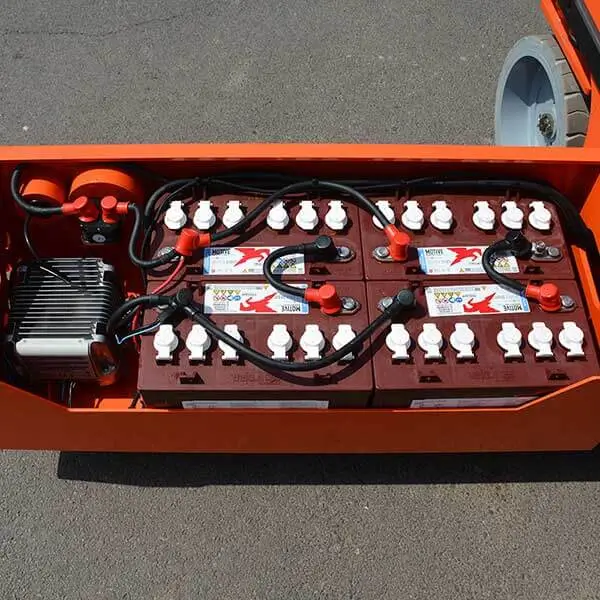

Heavy-Duty Deep-Cycle Battery Pack
Configured with high-capacity, deep-cycle traction batteries engineered to sustain intensive, continuous multi-shift operations. This reliable zero-emission power ecosystem guarantees excellent energy density and an extended lifespan, making it the perfect choice for high-frequency indoor warehousing and cleanroom environments.

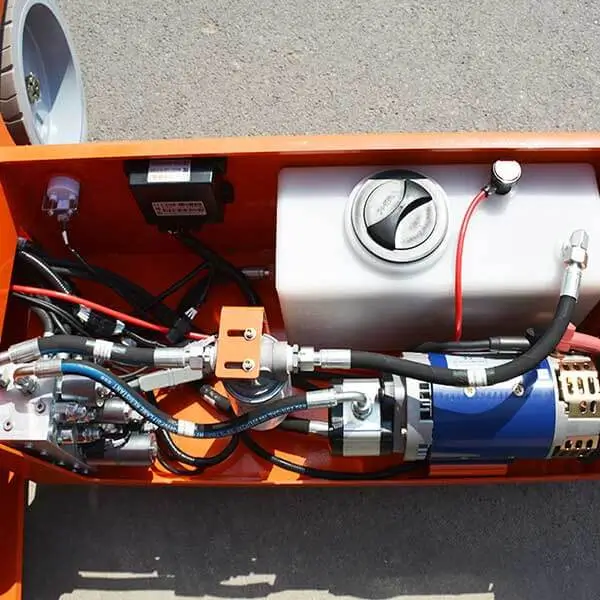

Integrated Hydraulic Power Unit
Engineered for seamless vertical extension and highly reliable pressure management. Our integrated hydraulic power pack couples a high-torque electric motor with a precision leak-proof pump assembly and valve block, delivering smooth, responsive, and zero-drop lifting force even when fully loaded to maximum weight capacities.

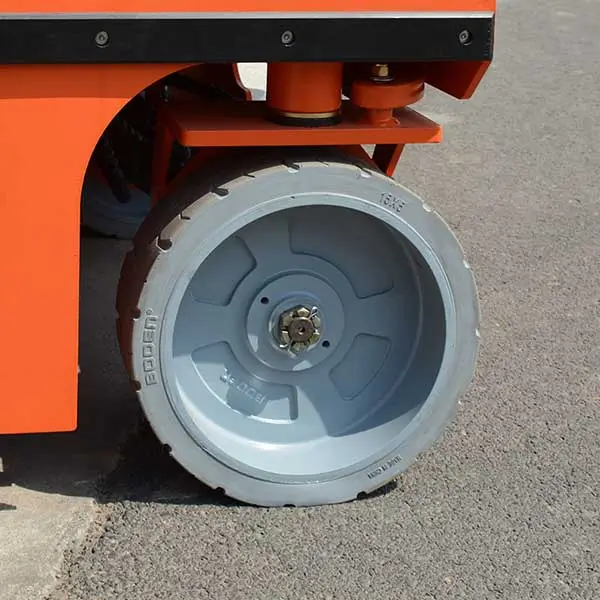

Non-Marking Solid Industrial Tires
Fitted with premium heavy-duty non-marking solid rubber tires mounted on reinforced steel wheel hubs. Specifically designed for commercial indoor applications, these tires provide superior traction, eliminate puncture risks, and fully protect sensitive warehouse and logistics floorings from dark scuff marks during frequent transit.
Specification – GTJZ Series
| Model | Platform Size (mm) | Load Capacity (kg) | Max. Platform Ht. (m) | Max. Working Ht. (m) | Overall Dimensions (mm) | Machine Weight (kg) |
| GTJZD03 | 1290×700 | 230 | 3 | 5 | 1460×760×2010 | 815 |
| GTJZD04 | 1290×700 | 230 | 4 | 6 | 1460×760×2030 | 890 |
| GTJZ-06 | 2290×1130 | 550 | 6 | 8 | 2480×1190×2190 | 2050 |
| GTJZ-06A | 2290×810 | 380 | 6 | 8 | 2480×810×2180 | 1880 |
| GTJZ-08 | 2290×1130 | 450 | 8 | 10 | 2480×1190×2320 | 2190 |
| GTJZ-08A | 2290×810 | 230 | 8 | 10 | 2480×850×2300 | 2030 |
| GTJZ-10 | 2495×1130 | 320 | 10 | 12 | 2495×1190×2450 | 2500 |
| GTJZ-12 | 2495×1130 | 320 | 11.8 | 13.8 | 2495×1190×2585 | 2950 |
| GTJZ-14 | 2670×1400 | 227 | 13.8 | 15.8 | 2840×1400×2595 | 3390 |

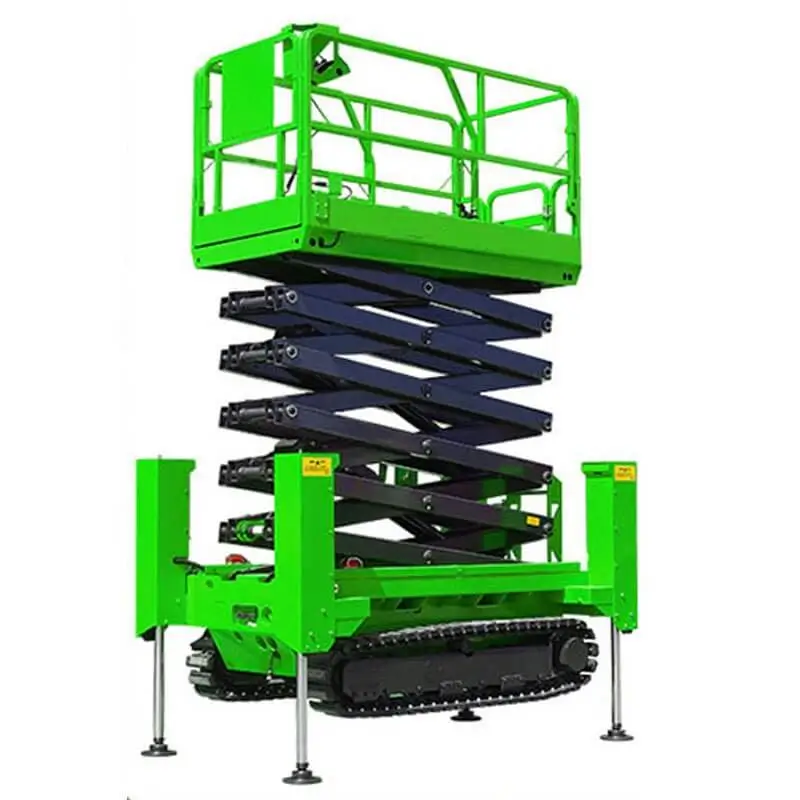

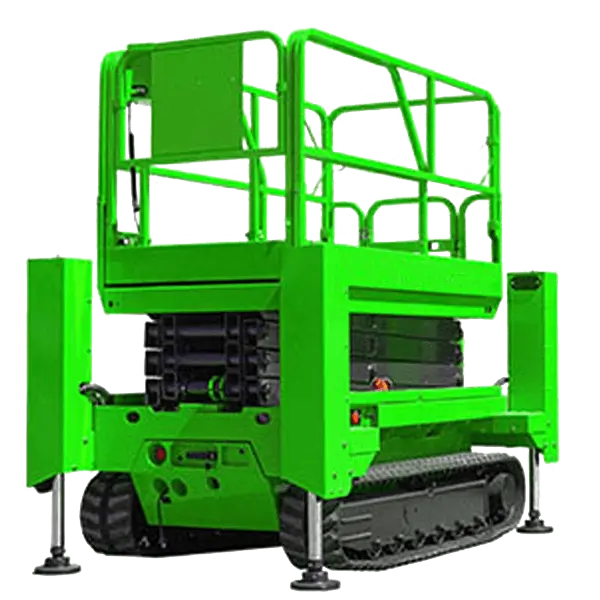

Rough-Terrain Crawler / Tracked Scissor Lifts
Engineered for complex outdoor obstacles and muddy terrains, our track-mounted crawler scissor lifts provide unmatched off-road capability. The automatic leveling hydraulic outriggers guarantee exceptional safety during harsh high-altitude construction work.
Technical Profile:
Specially developed for unpaved, rugged construction sites, muddy environments, and agricultural engineering. Replacing traditional tires with heavy-duty rubber crawler tracks, this series delivers extreme gradeability, excellent flotation, and zero ground slippage, enabling high-altitude operations where standard wheeled units cannot tread.

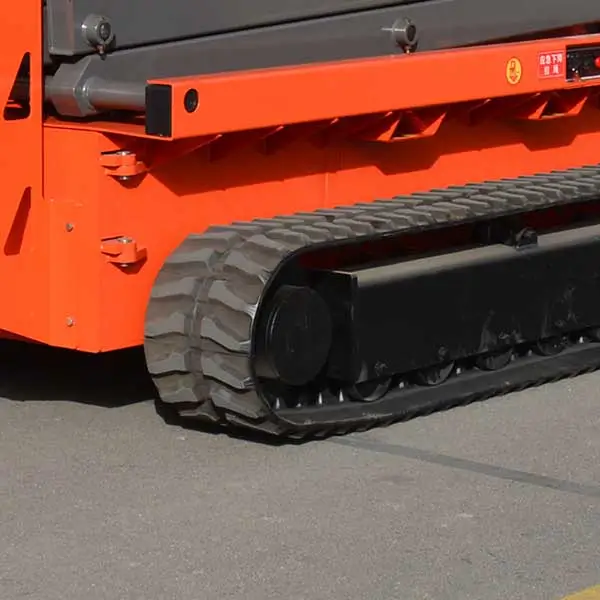

Heavy-Duty Rubber Crawler Tracks
Engineered with a premium rubber crawler undercarriage system that delivers exceptionally low ground pressure and superior flotation. This off-road track design allows the scissor lift to smoothly traverse mud, soft sand, and unpaved outdoor construction sites with maximum traction and zero slippage.

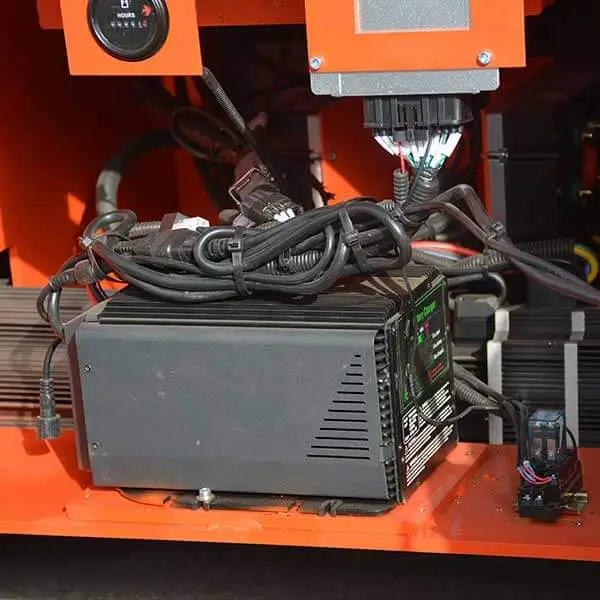

Smart AC Digital Control System
Outfitted with an intelligent digital electronic controller module integrated inside the protective chassis compartment. This advanced ECU system precisely manages power delivery, thermal stability, and automated circuit protection, guaranteeing high-efficiency operation under demanding engineering conditions.

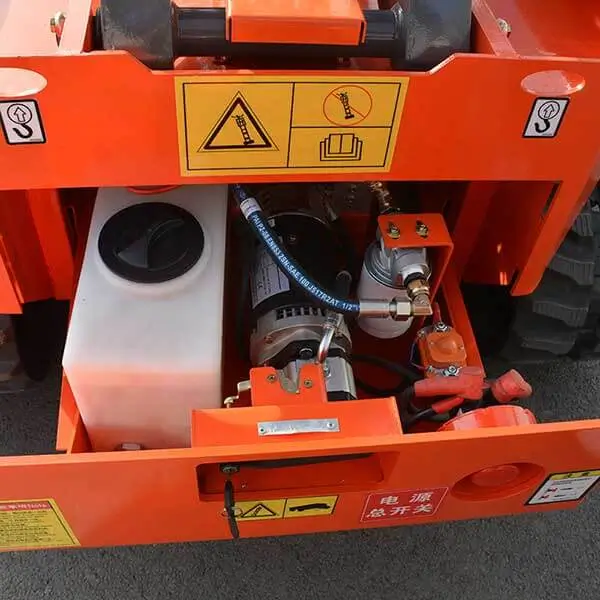

Advanced Hydraulic Management Reservoir
Outfitted with an intelligent digital electronic controller module integrated inside the protective chassis compartment. This advanced ECU system precisely manages power delivery, thermal stability, and automated circuit protection, guaranteeing high-efficiency operation under demanding engineering conditions.

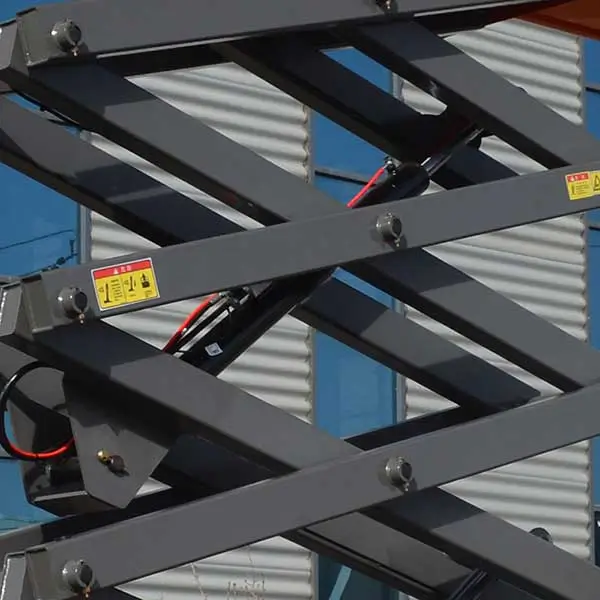

Reinforced Off-Road Scissor Linkages
Built from high-rigidity structural steel arms specifically optimized to withstand harsh, uneven job site vibrations. This robust mechanical linkage matrix completely eliminates high-altitude sway, providing ultimate platform stability and safety when operating on rugged, unlevel terrain.
Specification – Crawler Series
| Model | Platform Size (mm) | Load Capacity (kg) | Max. Platform Ht. (m) | Max. Working Ht. (m) | Overall Dimensions (mm) | Machine Weight (kg) |
| Crawler 06 | 1480×760 | 230 | 3.8 | 5.8 | 1480×760×1550 | 885 |
| Crawler 06W | 1290×700 | 230 | 4 | 6 | 1522×1210×1823 | 1200 |
| Crawler 08 | 1460×810 | 230 | 5.8 | 7.8 | 1460×1080×1800 | 1200 |
| Crawler 08W | 1669×745 | 230 | 6 | 8 | 1.974×1210×1738 | 1620 |
| Crawler 10 | 2271×1110 | 230 | 8 | 10 | 2528×1390×1910 | 3150 |
| Crawler 12 | 2271×1110 | 230 | 10 | 12 | 2528×1390×2041 | 3200 |
| Crawler 14 | 2270×1100 | 230 | 11.8 | 13.8 | 2720×1650×1940 | 3700 |
| Crawler 16 | 2643×1115 | 230 | 14 | 16 | 3034×1823×2818 | 4000 |
