Premium Aluminum Vertical Mast Lifts for Sale | DADE® Factory Direct
Engineered by DADE Machinery, China’s premier lifting platform manufacturer. Certified by CE and IPAF, our aluminum alloy lifts deliver exceptional structural rigidity, lightweight portability, and stable vertical reach up to 18 meters. Perfectly designed for high-altitude maintenance in hotels, airports, warehouses, and commercial facilities.
Established 2014 | 7 Production Bases (200+ Acres) | CE & IPAF Certified Approved Quality
Heavy-Duty Hydraulic Aerial Work Platform Manufacturer from China
Welcome to DADE® Machinery. If you are sourcing high-quality aluminum vertical mast lifts for sale, our certified lifting equipment offers the ultimate blend of lightweight mobility and structural stability. Perfect for warehouse maintenance, facility management, and high-altitude installation worldwide.
Specification
Single Mast Lift Series

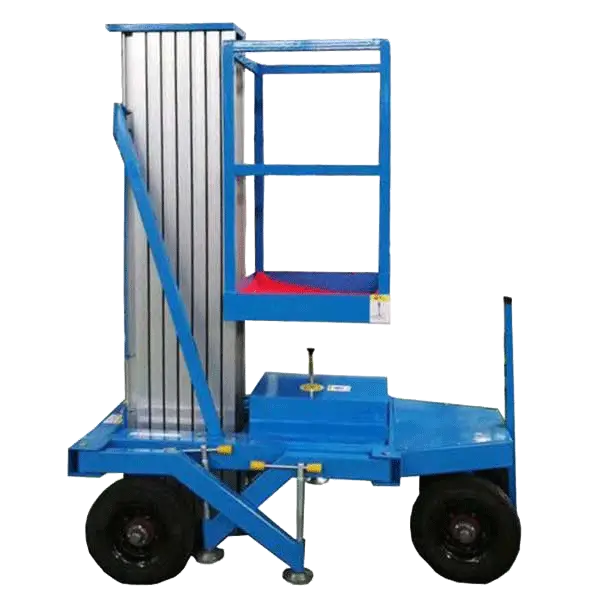

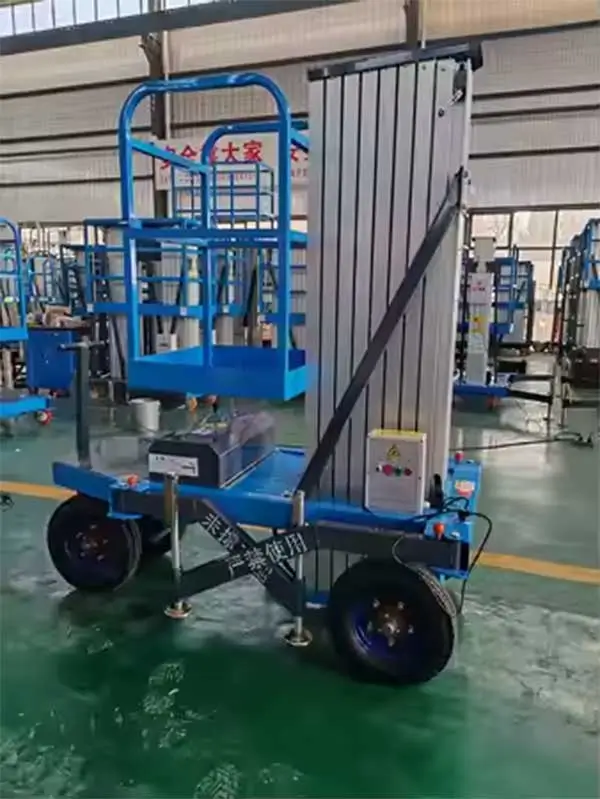

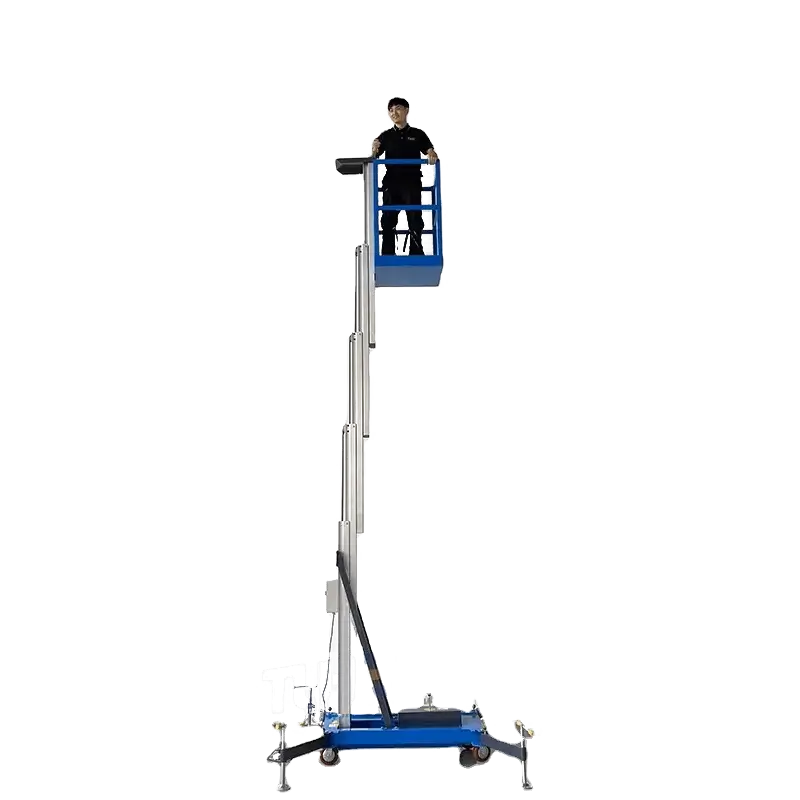

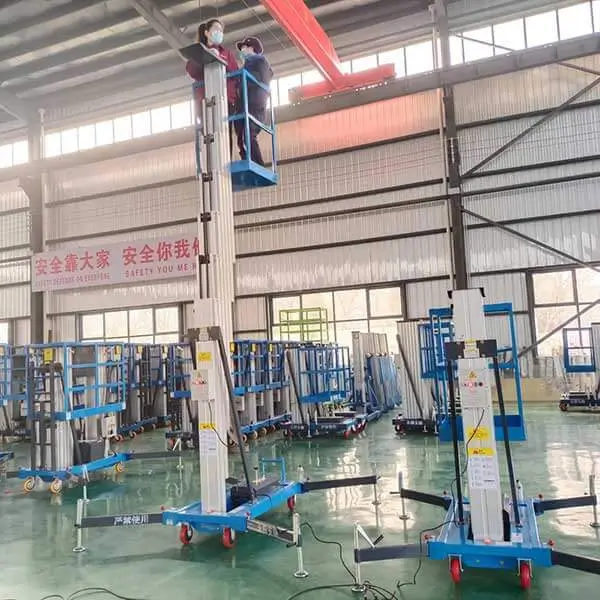

Our single aluminum vertical mast lifts for sale offer an ultra-compact footprint for narrow aisle warehousing and indoor maintenance. These lightweight aerial work platforms ensure smooth high-altitude operation with high-strength aluminum alloy masts.
| Model | Max Platform Ht. (m) | Max Working Ht. (m) | Platform Size (m) | Overall Dimension (m) | Outrigger Spread (m) | Machine Weight (kg) PDF |
| LH4-150-1 | 4 | 6 | 0.65 × 0.65 × 1.1 | 1.42 × 0.78 × 1.97 | 1.70 × 1.91 | 280 |
| LH6-150-1 | 6 | 8 | 0.65 × 0.65 × 1.1 | 1.40 × 0.78 × 1.97 | 1.70 × 1.91 | 360 |
| LH8-130-1 | 8 | 10 | 0.65 × 0.65 × 1.1 | 1.42 × 0.78 × 1.97 | 1.70 × 1.91 | 380 |
| LH10-130-1 | 10 | 12 | 0.65 × 0.65 × 1.1 | 1.42 × 0.78 × 1.97 | 1.70 × 1.91 | 420 |

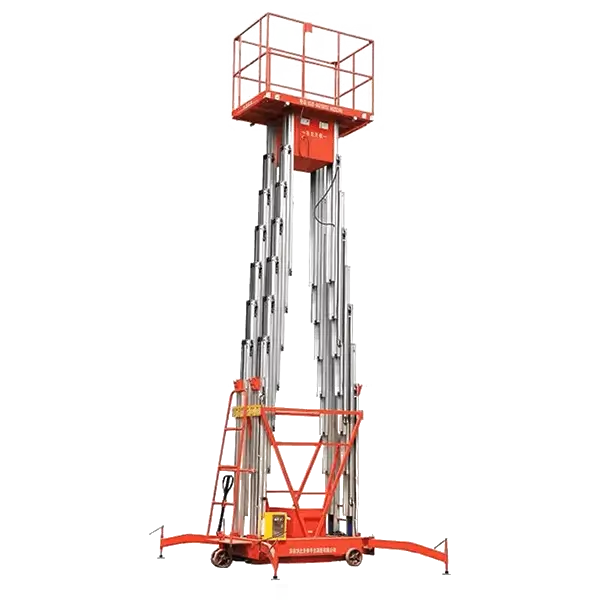

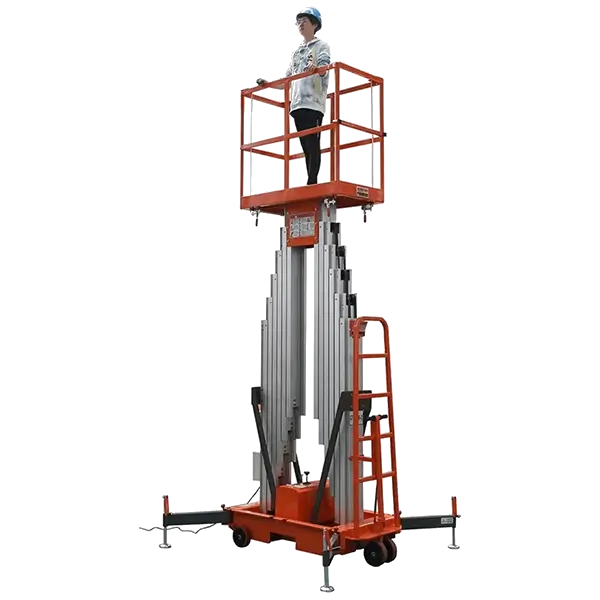

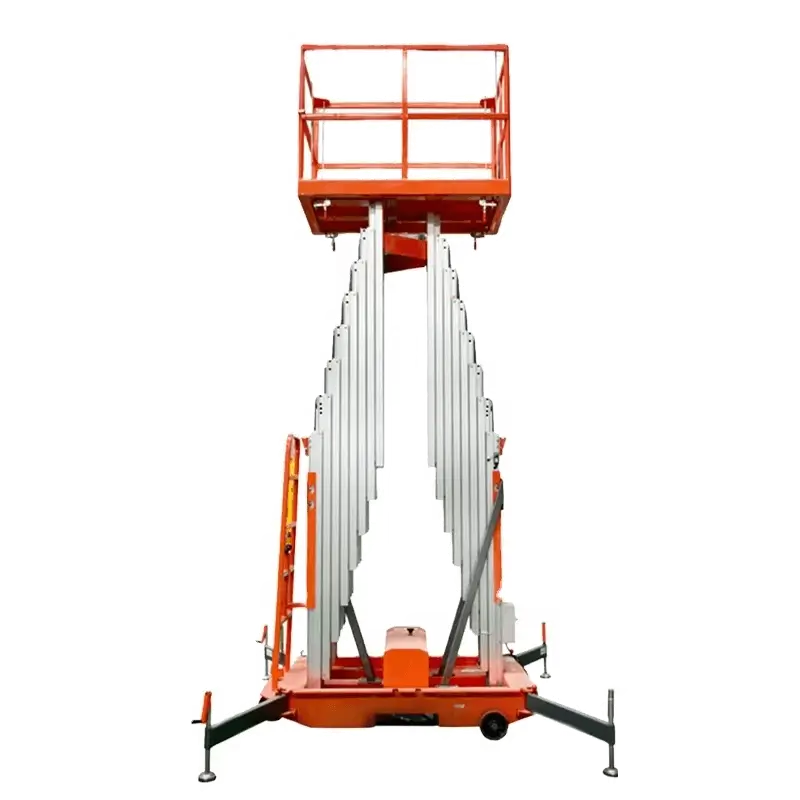

Double Mast Lift Series
DADE double aluminum vertical mast lifts for sale deliver enhanced loading capacity and a spacious platform size for two operators. Equipped with dual-control panels, these reliable lifting structures are ideal for complex hotel decorations and gym upkeep.
| Model | Max Platform Ht. (m) | Max Working Ht. (m) | Platform Size (m) | Overall Dimension (m) | Outrigger Spread (m) | Machine Weight (kg) |
| LH6-300-2 | 6 | 8 | 1.2 × 0.63 × 1.1 | 1.55 × 0.85 × 2.0 | 1.69 × 1.81 | 510 |
| LH8-300-2 | 8 | 10 | 1.2 × 0.63 × 1.1 | 1.55 × 0.85 × 2.0 | 1.69 × 1.81 | 550 |
| LH10-250-2 | 10 | 12 | 1.5 × 0.63 × 1.1 | 1.84 × 0.85 × 2.0 | 1.95 × 2.26 | 690 |
| LH12-200-2 | 12 | 14 | 1.5 × 0.63 × 1.1 | 1.84 × 0.85 × 2.0 | 1.95 × 2.26 | 730 |
| LH14-150-2 | 14 | 16 | 1.5 × 0.63 × 1.1 | 1.95 × 1.05 × 2.39 | 2.24 × 2.41 | 790 |
Multi Mast Lift Series
Engineered for maximum stability at extreme heights, our multi-mast aluminum vertical mast lifts for sale provide exceptional rigidity and reach. The intelligent interlocking outriggers and leveling indicator guarantee ultimate worker safety on harsh construction sites.
| Model | Max Platform Height (m) | Max Working Height (m) | Platform Size (m) | Overall Dimension (m) | Outrigger Spread Dimension (m) | Machine Weight (kg) |
| LH12-200-3 | 12 | 14 | 1.57 × 0.9 × 1.1 | 1.9 × 1.1 × 1.98 | 2.22 × 2.27 | 1050 |
| LH14-200-3 | 14 | 16 | 1.57 × 0.9 × 1.1 | 1.9 × 1.2 × 2.3 | 2.95 × 2.58 | 1120 |
| LH16-200-3 | 16 | 18 | 1.57 × 0.9 × 1.1 | 2.0 × 1.2 × 2.7 | 2.95 × 2.58 | 1200 |
Details

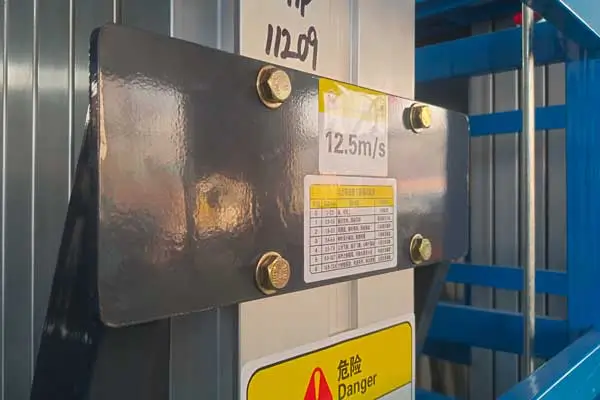

Heavy-Duty Mechanical Safety Interlock Block
Equipped with industrial-grade structural interlocking blocks and explicit safety caution labels. This rigid mechanical safeguard prevents over-extension and structural shifting, ensuring maximum stability when the mast elevates.

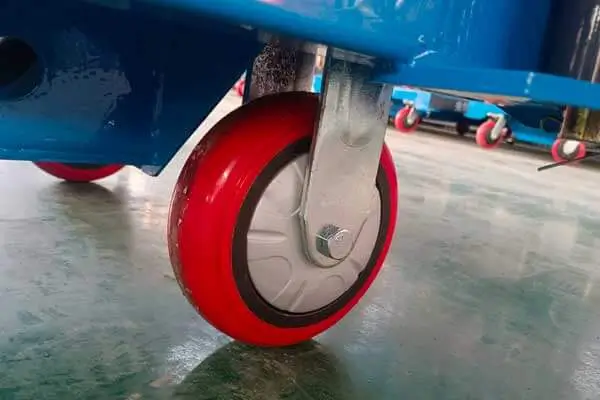

Premium Non-Marking Polyurethane Casters
Engineered with high-strength, wear-resistant polyurethane (PU) wheels and robust steel brackets. These casters guarantee ultra-smooth, low-noise maneuvering while fully protecting sensitive commercial facility floors from scratches and marks.

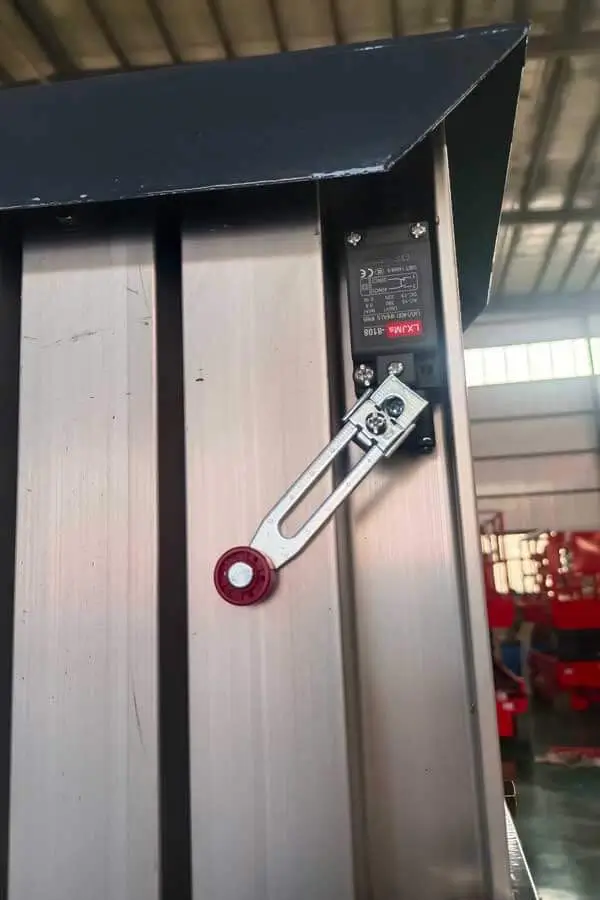

Quick-Release Structural Safety Latch
Features a precision-engineered mechanical swing latch for the rapid setup and secure locking of critical components. It provides a reliable, tactile interlocking mechanical engagement to prevent accidental drift or loosening.

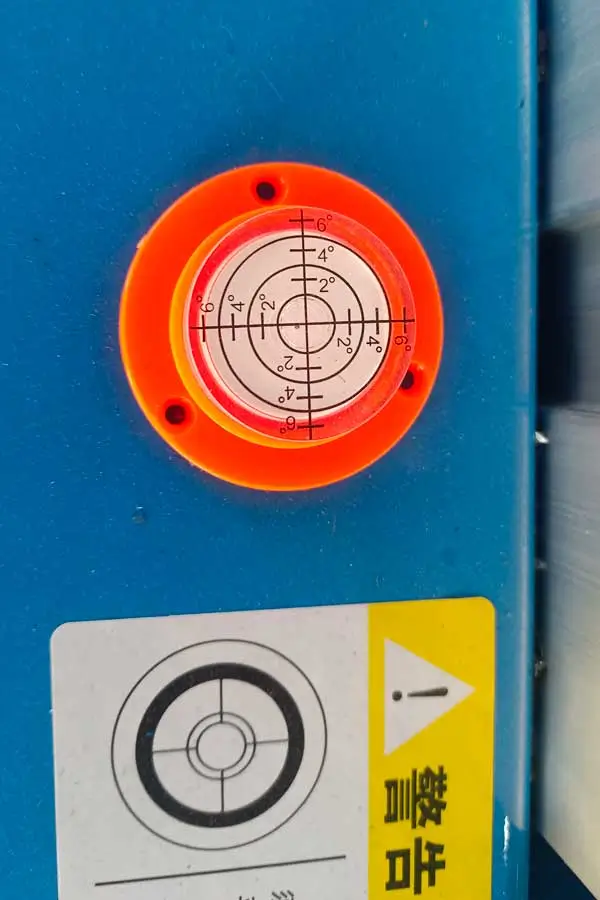

High-Precision Bullseye Spirit Level Indicator
Integrated directly into the heavy-duty chassis, this high-visibility circular bubble level allows operators to quickly check and perfectly level the machine via the adjustable outriggers before lift deployment.

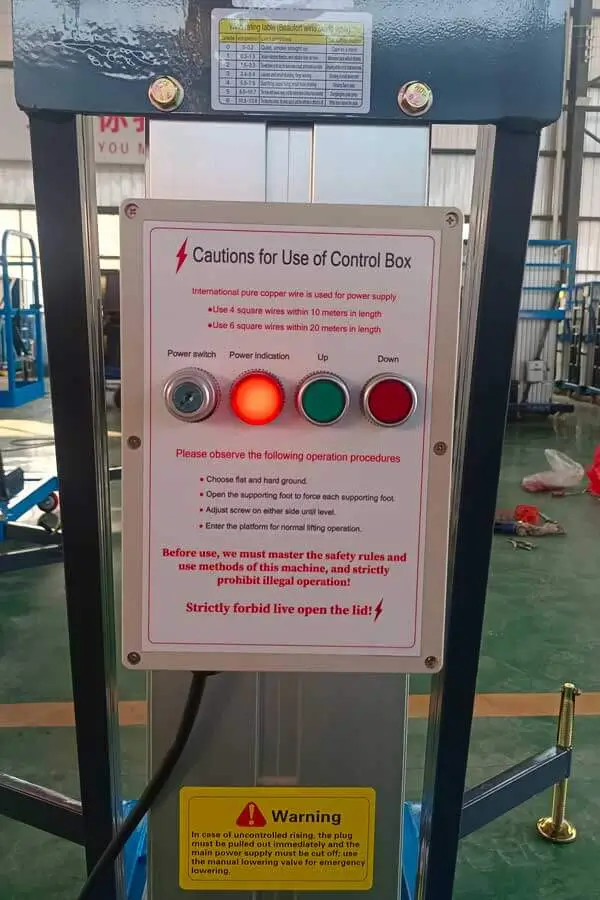

Ergonomic Control Panel with Status Indicator Lights
Features an intuitive electrical control system equipped with power status lights, clear warning instructions, and heavy-duty buttons. It simplifies operations while adhering strictly to international low-voltage electrical safety standards.

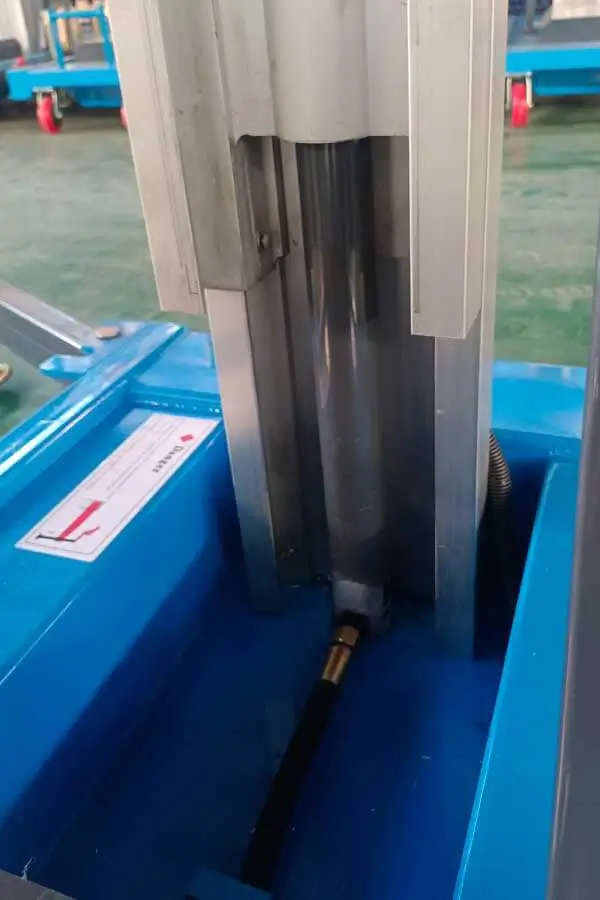

High-Pressure Hydraulic Cylinder Lifting Core
Driven by a premium, leak-proof hydraulic cylinder assembly nestled safely within the steel chassis. It delivers incredibly smooth, quiet, and stable vertical propulsion, ensuring seamless acceleration and deceleration.
